Fixed Guard vs Interlock vs Light Curtain: Which Fits

OSHA places machine guarding under 29 CFR 1910 Subpart O, yet many plants still treat every safeguarding choice as if a guard, an interlock, and a light curtain solve the same problem. This comparison shows when each option belongs in the risk decision, because the wrong safeguard can protect the audit file while leaving the operator exposed at the point of operation.

Fixed guard vs interlock vs light curtain is a machine-safeguarding decision about access, energy, cycle frequency, stopping performance, and defeat risk. Fixed guards physically block access, interlocked guards stop hazardous motion when opened, and light curtains detect entry into the danger zone without a physical barrier.

Why does the safeguard choice matter?

The safeguard choice matters because machines expose people through different paths: rotating parts, ingoing nip points, flying chips, stored energy, and point-of-operation access. OSHA states in its machine-guarding eTool that guards protect operators and other employees from hazards created by moving machine parts, which makes the first decision physical rather than cosmetic.

Most weak machine-safety programs fail before the device is installed. The team asks which device is convenient, available, or already preferred by maintenance, rather than asking which hazard path must be interrupted. As Andreza Araujo argues in A Ilusao da Conformidade, translated as The Illusion of Compliance, formal compliance can hide a weak operating system when leaders mistake a visible requirement for a working barrier.

For a 320-employee fabrication plant, the difference is practical. A fixed guard may be right for a rarely accessed drive chain, an interlocked movable guard may fit a frequent jam-clearing point, and a light curtain may fit a loading zone where the operator must enter the opening every cycle. Treating those 3 cases as one decision turns safeguarding into purchasing rather than risk reduction.

Evaluation criteria for machine safeguards

A machine safeguard should be evaluated against 6 criteria: hazard access, required operator interaction, stopping time, defeat resistance, maintenance exposure, and evidence quality. If the team cannot answer those 6 points, the device selection is premature, even when the quote looks technically impressive.

6 criteria separate a real safeguard decision from a vendor preference, because each option protects differently. Fixed guards reduce access by design. Interlocks manage access during operation. Light curtains depend on detection, stopping performance, and safe distance. ISO specifies in ISO 13855:2024 that safeguard positioning must account for how the human body approaches the hazard, which is why distance cannot be guessed.

Across 25+ years leading EHS at multinationals, Andreza Araujo identifies one recurring trap: leaders ask whether a control exists before they ask whether normal work will defeat it. That distinction matters for critical control verification, because a safeguard that cannot survive production pressure is not a stable control.

Use the criteria before procurement, before startup, and after the first 30 days of operation. A safeguard that works during commissioning can fail in routine work when cleaning, jams, product changeovers, tool access, or shift pressure changes how people interact with the machine.

1. Fixed guards: best for stable access control

Fixed guards are best when the hazardous area does not need routine operator access during normal production. OSHA 1910.212 requires machine guarding to protect operators and other employees from point-of-operation hazards, rotating parts, flying chips, and sparks, and fixed guards meet that intent when they remove access without relying on a sensor or a human decision.

The strength of a fixed guard is simplicity. It creates a physical separation between the person and the hazard, which makes it less dependent on software, stopping distance, or operator response. ISO describes ISO 14120:2015 as the standard for general requirements in the design and construction of fixed and movable guards, including guards used to protect people from mechanical hazards.

The weakness appears when the process needs frequent access. If operators remove a bolted guard 12 times per shift for cleaning or jam removal, the guard is no longer functioning as a stable barrier. It has become a design mismatch, and the real risk is now the informal workaround that the organization quietly tolerates.

Choose fixed guards for drive transmissions, gears, belts, fan blades, and enclosed mechanisms where access is rare and maintenance can be governed through hazardous energy control before servicing work. Do not choose them when routine production requires repeated opening, because repeated removal teaches the workforce that the barrier is negotiable.

2. Interlocked guards: best for repeated controlled access

Interlocked guards are best when people need repeated access to a hazardous zone, but hazardous motion must stop or be prevented when the guard opens. ISO 14119:2024 covers principles for interlocking devices associated with guards and explicitly addresses design selection, application, and reasonably foreseeable defeat.

The value of an interlock is controlled access. It recognizes that the operator or technician must enter the zone, then connects that access to machine state. OSHA's machine-guarding eTool describes interlocked guards as guards where opening or removing the guard automatically shuts off or disengages the tripping mechanism and prevents cycling until the guard is back in place.

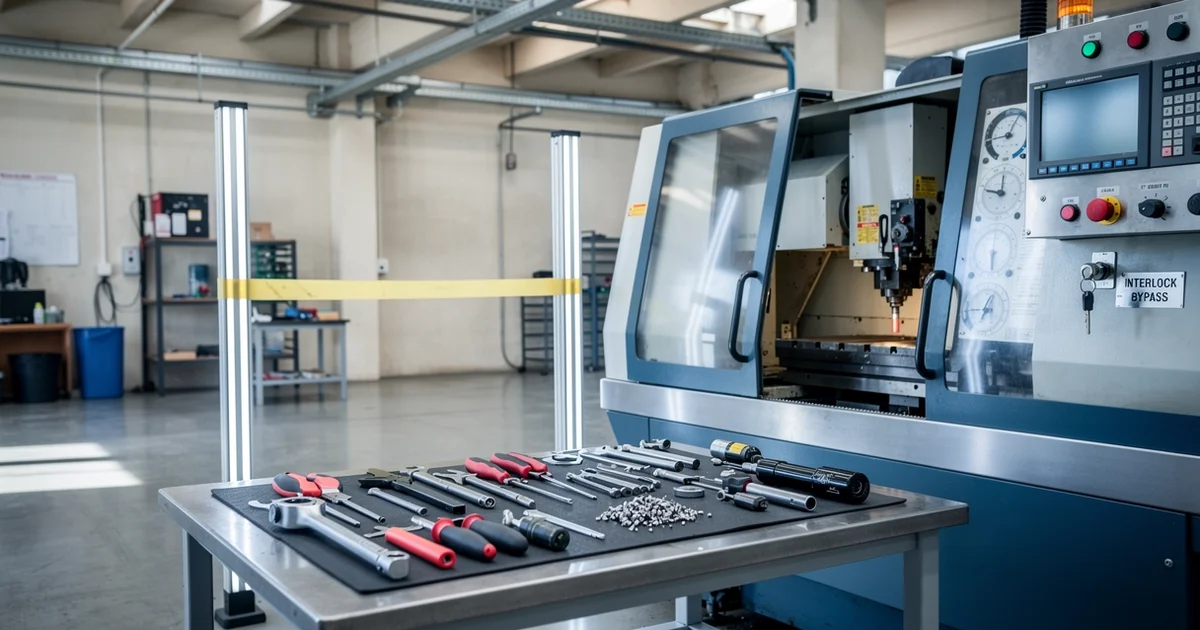

The leadership trap is treating the interlock as self-proving. Interlocks can be defeated, bypassed, poorly positioned, poorly coded, or poorly maintained. Headline has already covered interlock bypass review before restart because the dangerous moment often comes after a temporary bypass becomes normal work.

Use interlocked guards for doors, covers, panels, and access points where production requires entry but only under a safe state. Specify anti-defeat features, test frequency, reset logic, fault detection, and restart rules. A movable guard that only looks sophisticated but permits easy defeat is weaker than a simple fixed guard that stays in place.

3. Light curtains: best for frequent point-of-operation access

Light curtains are best when the operator must access the point of operation frequently and a physical guard would make the task impractical. Their protection depends on presence sensing, stopping performance, safe distance, and control reliability, which means installation quality matters as much as device quality.

The benefit is speed of work with a non-contact protective field. In a press, packaging line, or automated cell, the operator may need to load, unload, align, or clear material many times per hour. A light curtain can allow that interaction while interrupting hazardous motion when the detection field is crossed.

The weakness is that a light curtain is not a wall. It must be far enough from the hazard that the machine stops before the person reaches danger, and that distance changes with stopping time, approach direction, reach, and body movement. ISO 13855:2024 is relevant here because it covers positioning safeguards with respect to human approach, including electro-sensitive protective equipment.

Use light curtains only after measuring stopping time and validating the full safety function. If stopping time drifts after brake wear, control changes, load variation, or maintenance, the safe distance may no longer be safe. That is why the device belongs in a verification calendar, not only in the commissioning file.

Which option is easiest to defeat?

The easiest option to defeat depends on the mismatch between the safeguard and the work, not only on the technology. A fixed guard is defeated when it blocks routine access, an interlock is defeated when restart pressure rewards bypassing, and a light curtain is defeated when muting, blanking, or poor positioning makes the protective field inconvenient.

NIOSH recommends reviewing machine-related fatality reports to identify prevention lessons, and those reports repeatedly show that fatal events are rarely caused by the absence of one label. They usually involve a chain of access, energy, maintenance, supervision, and control failure.

In more than 250 cultural transformation projects, Andreza Araujo observes that defeat risk increases when leaders reward production recovery without asking which control was sacrificed. The operator may remove the guard, but the system often taught the operator that the machine must run first and questions can wait.

The practical countermeasure is a defeat-risk review before final selection. Ask what the worker will do when the machine jams, when cleaning takes longer than planned, when maintenance is short-staffed, and when the line is behind target. A safeguard that fails in those 4 moments is not ready.

What should EHS managers ask before approval?

EHS managers should ask 5 approval questions before accepting a safeguard: what hazard path is blocked, how often access is needed, how safe distance or isolation was calculated, how defeat will be prevented, and how the control will be verified after startup. Those questions keep the decision tied to field evidence rather than vendor language.

5 approval questions are enough to expose most weak machine-safeguarding decisions. The first question protects against generic controls. The second tests whether the guard fits real work. The third tests engineering evidence. The fourth tests culture and supervision. The fifth tests whether the barrier will stay healthy after the project team leaves.

The same approval discipline should connect to safety coaching after shortcuts, because repeated safeguard defeat is not only a technical failure. It is also a leadership signal. If supervisors see bypasses and only tell people to be careful, the system is outsourcing design weakness to individual discipline.

Before approval, require a field walk with operations, maintenance, EHS, engineering, and one experienced operator. The operator should explain how the machine is cleared, cleaned, adjusted, restarted, and recovered after a fault. Those verbs reveal whether the selected safeguard protects real work or only the design drawing.

Decision matrix: fixed guard vs interlock vs light curtain

The decision matrix should show which safeguard fits which condition, rather than ranking one option as universally better. A high-quality machine-safety program often uses all 3 options across one line, because access frequency and hazard path change from one machine zone to another.

The table should be used zone by zone. A packaging cell may need a fixed guard at the drive, an interlocked gate for maintenance access, and a light curtain at the loading opening. The better decision is the one that matches the exposure, not the one that standardizes prematurely.

Recommendation by operating context

For stable equipment with rare access, choose fixed guards first because physical separation reduces dependence on behavior and control logic. For machines that need routine entry, choose interlocked guards when hazardous motion can be stopped before access. For fast-cycle loading and unloading, choose light curtains only when stopping performance and safe distance are proven.

Small manufacturers should resist the temptation to copy one safeguard type across every machine. Start with the highest-energy hazards, especially presses, conveyors, rollers, cutting equipment, and automated cells. Then map each access point by task frequency, energy state, and credible body access.

During the PepsiCo South America period, where the accident ratio fell 50 percent in six months, Andreza Araujo learned that visible leadership and disciplined verification had to move together. That lesson applies directly to machine safeguards because a leader who funds a device but never verifies how it is used has only bought potential protection.

Each month that a plant leaves machine safeguards to habit, vendor preference, or informal bypass decisions increases the chance that the first real proof of failure will be an amputation, crushing injury, or fatal exposure.

Conclusion

Fixed guards fit stable access, interlocked guards fit repeated controlled access, and light curtains fit frequent point-of-operation access where stopping performance is proven. The strongest machine-safety decision starts with the hazard path, then selects the safeguard that can survive normal production pressure.
